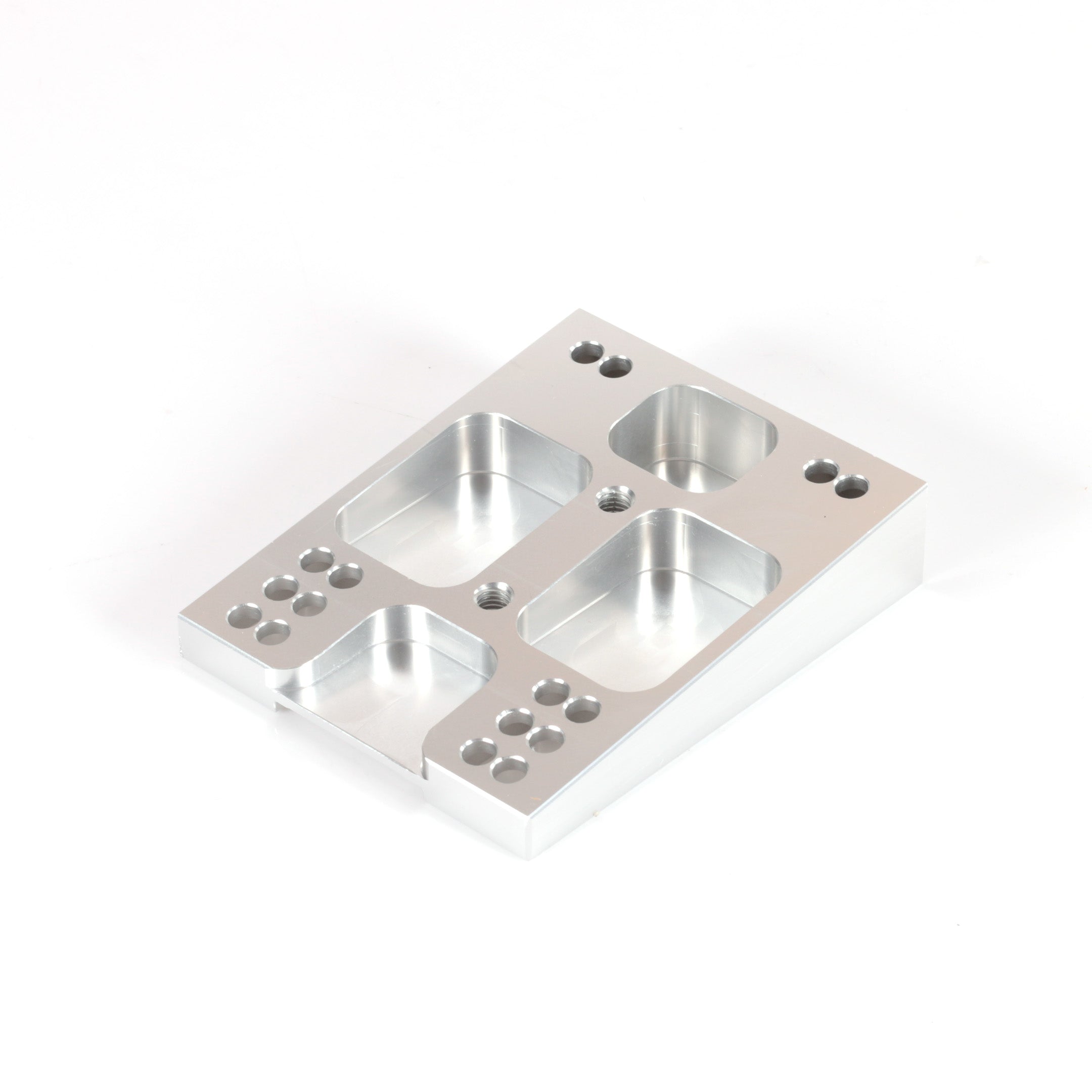

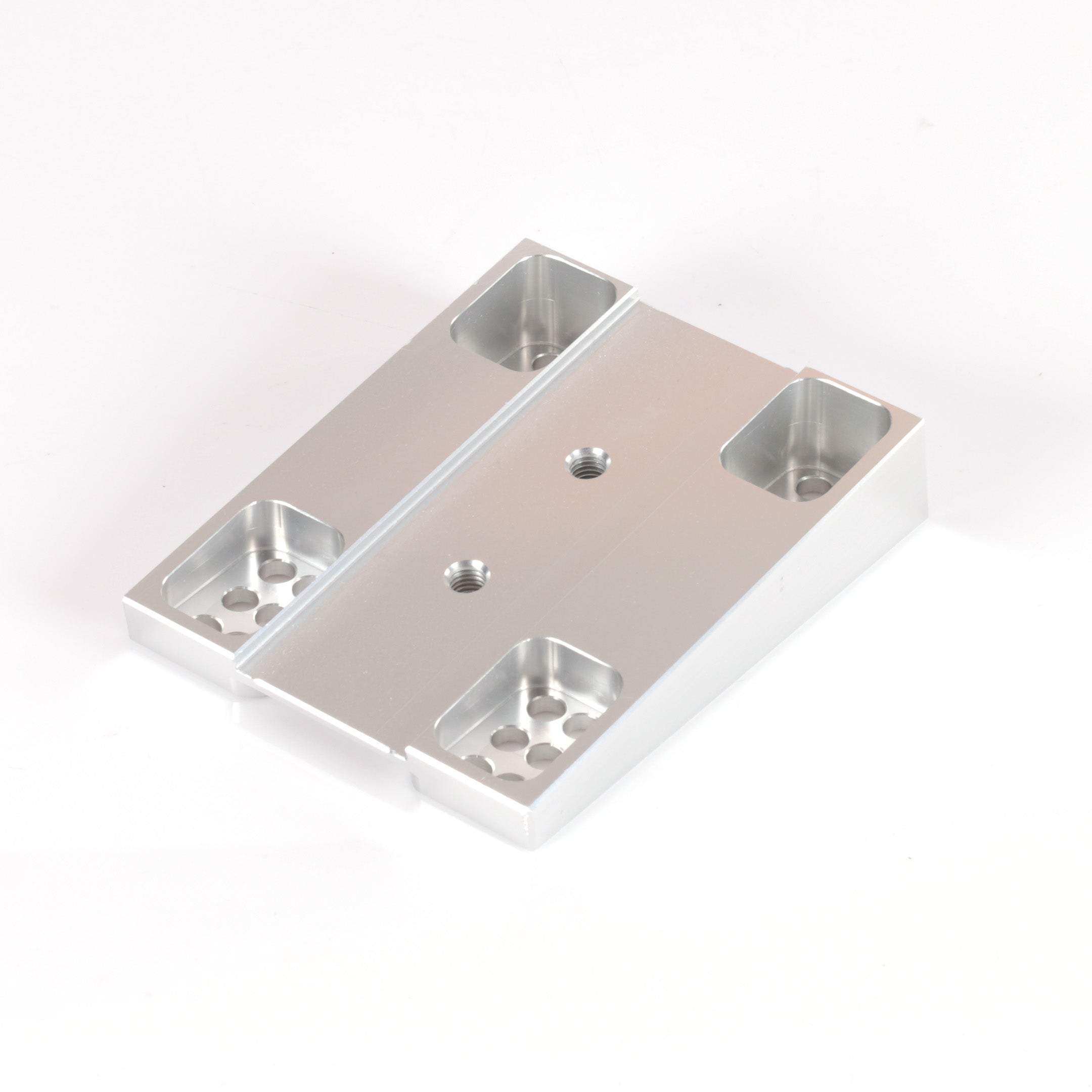

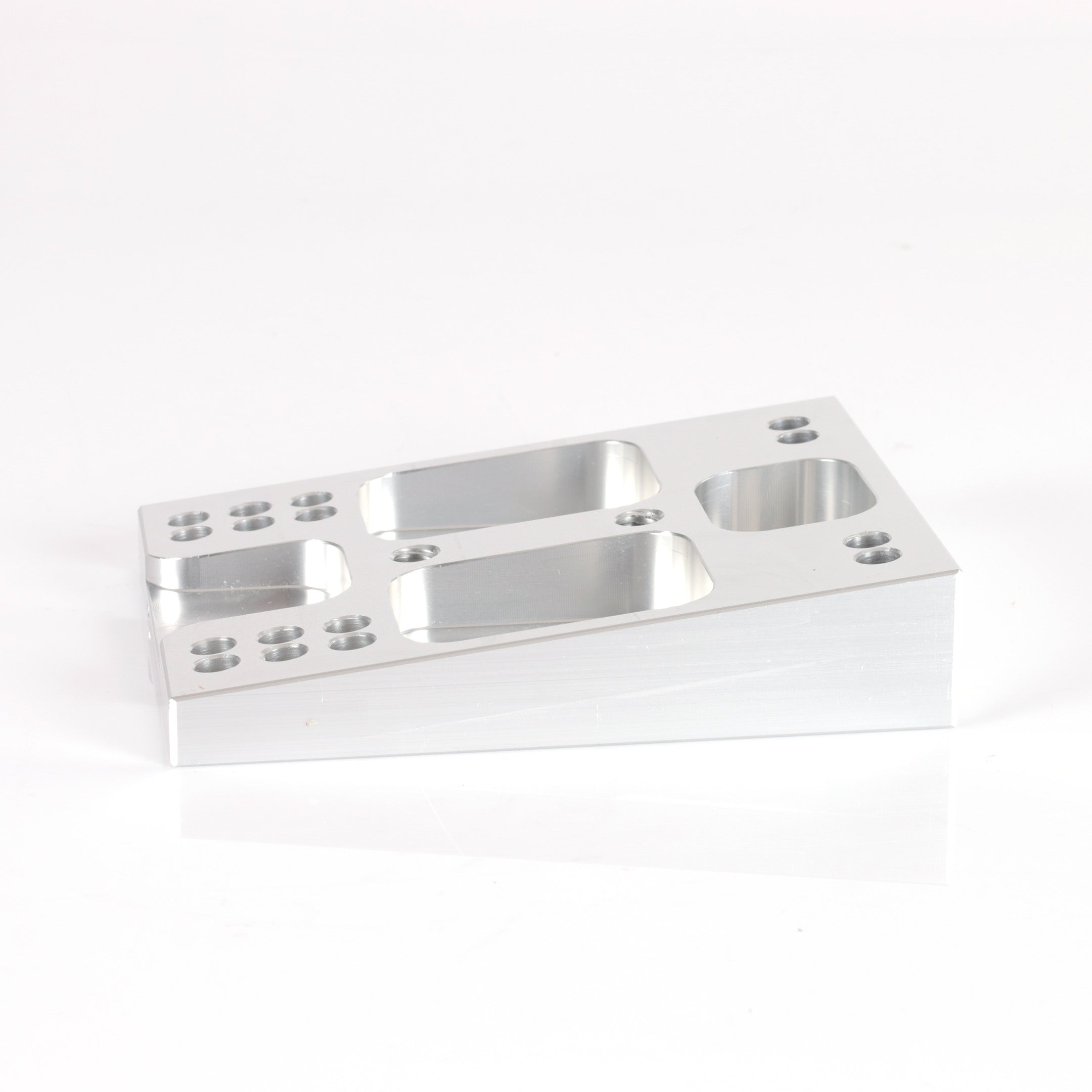

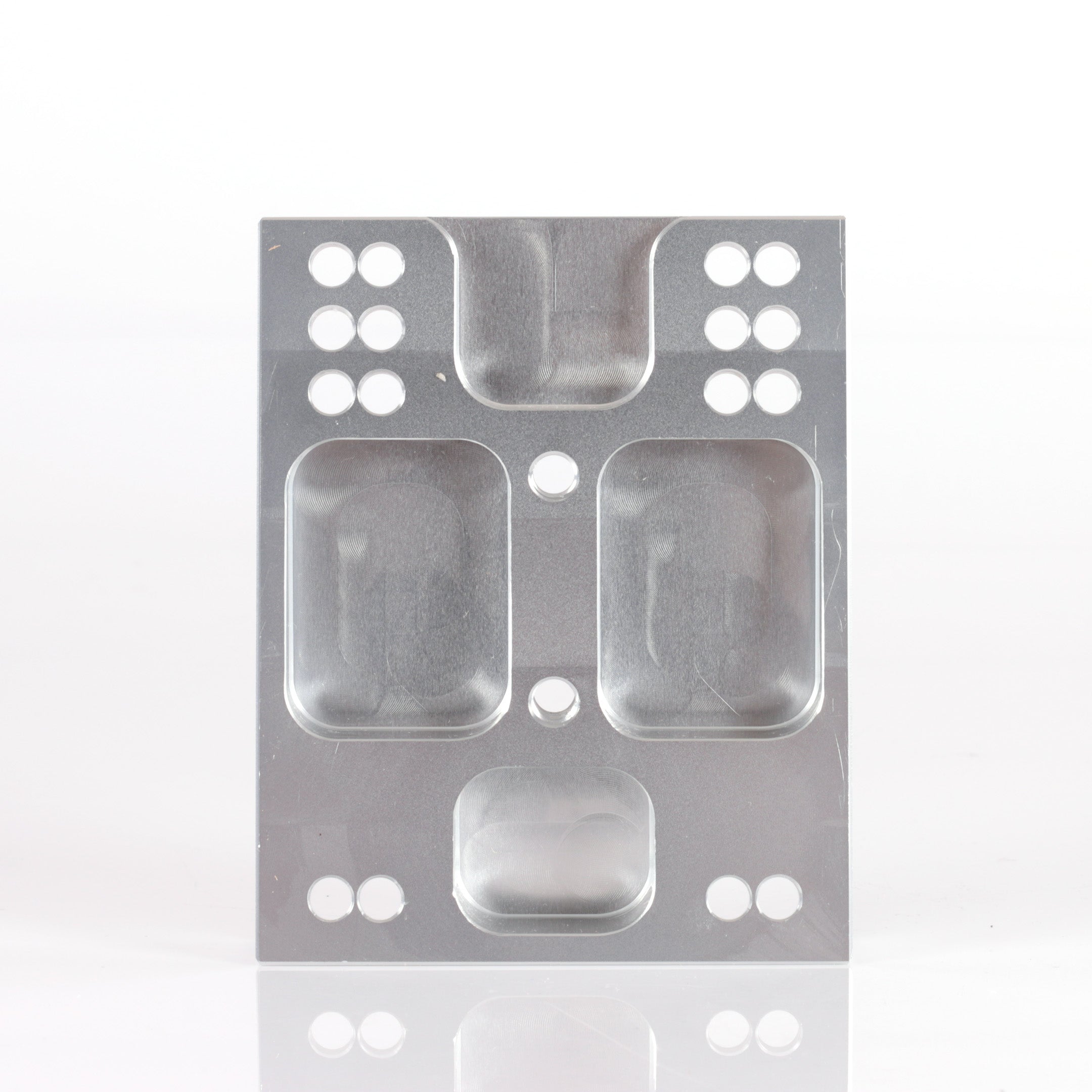

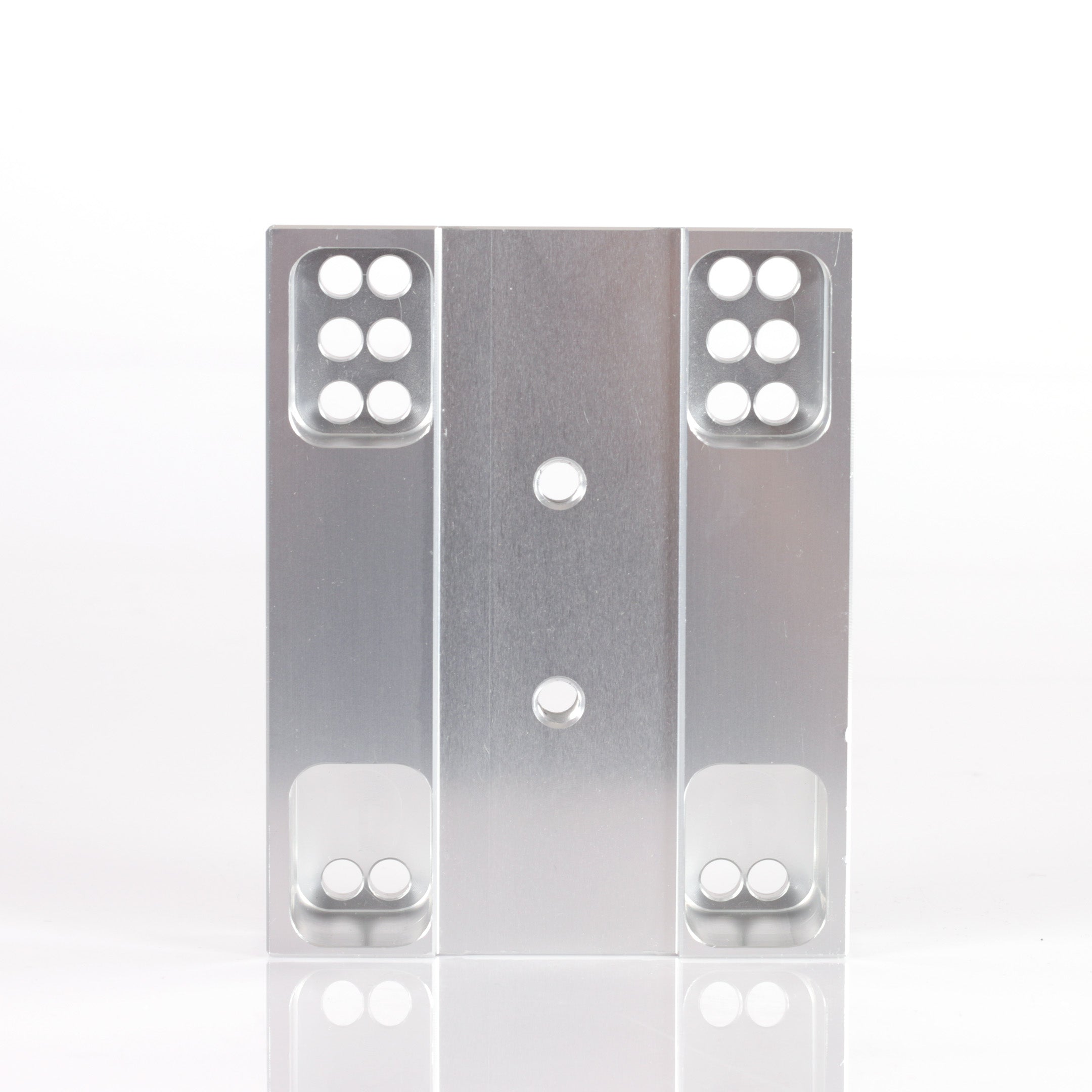

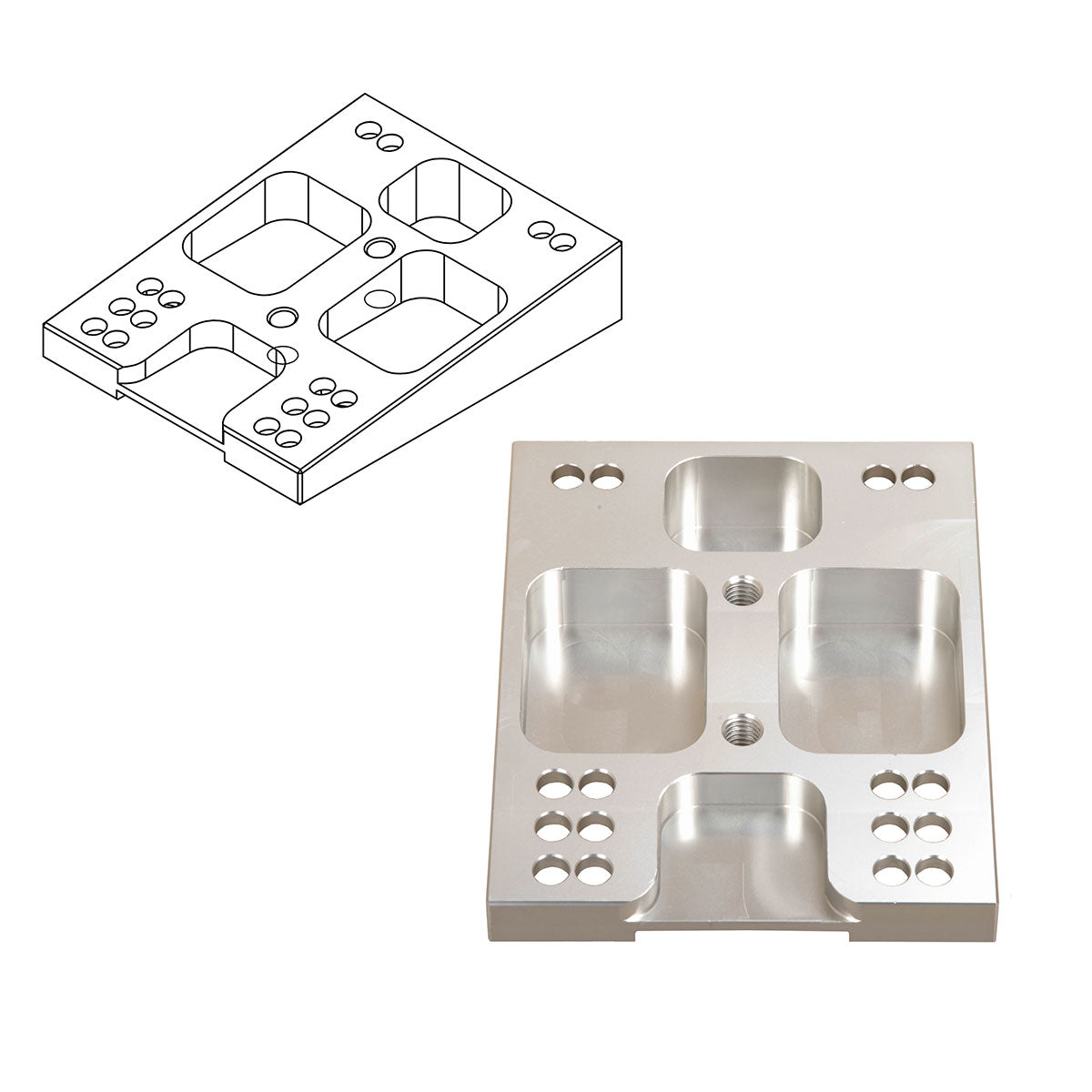

Engine mounting plate adjustable mount aluminium

Angled Aluminum Engine Plate for adjustable mounting is a upper engine plate designed for karting applications and precise engine installation.

Manufactured from anodized aluminum, it offers an excellent balance of lightweight construction and high strength. The integrated adjustment slide allows fine tuning of the engine position for optimal performance and balance.

The plate features three pre-drilled bolt patterns to fit the most common engine configurations. Its lightened design also enables additional custom drilling if required.

The rigid structure combined with anodized surface treatment ensures excellent resistance to wear, impacts, and corrosion.

• Angle: 7° inclination
• Type: Upper plate with adjustment slide
• Material: Anodized aluminum
• Bolt pattern: 80×102 mm
• Bolt pattern: 80×115 mm
• Bolt pattern: 80×128 mm

• Finish: Natural

To be paired with lower engine plate K897-NB (art 5304) for complete installation.
