Air Pressure Gauge + Dual Pyrometer + IR+Probe Prisma HPM 5

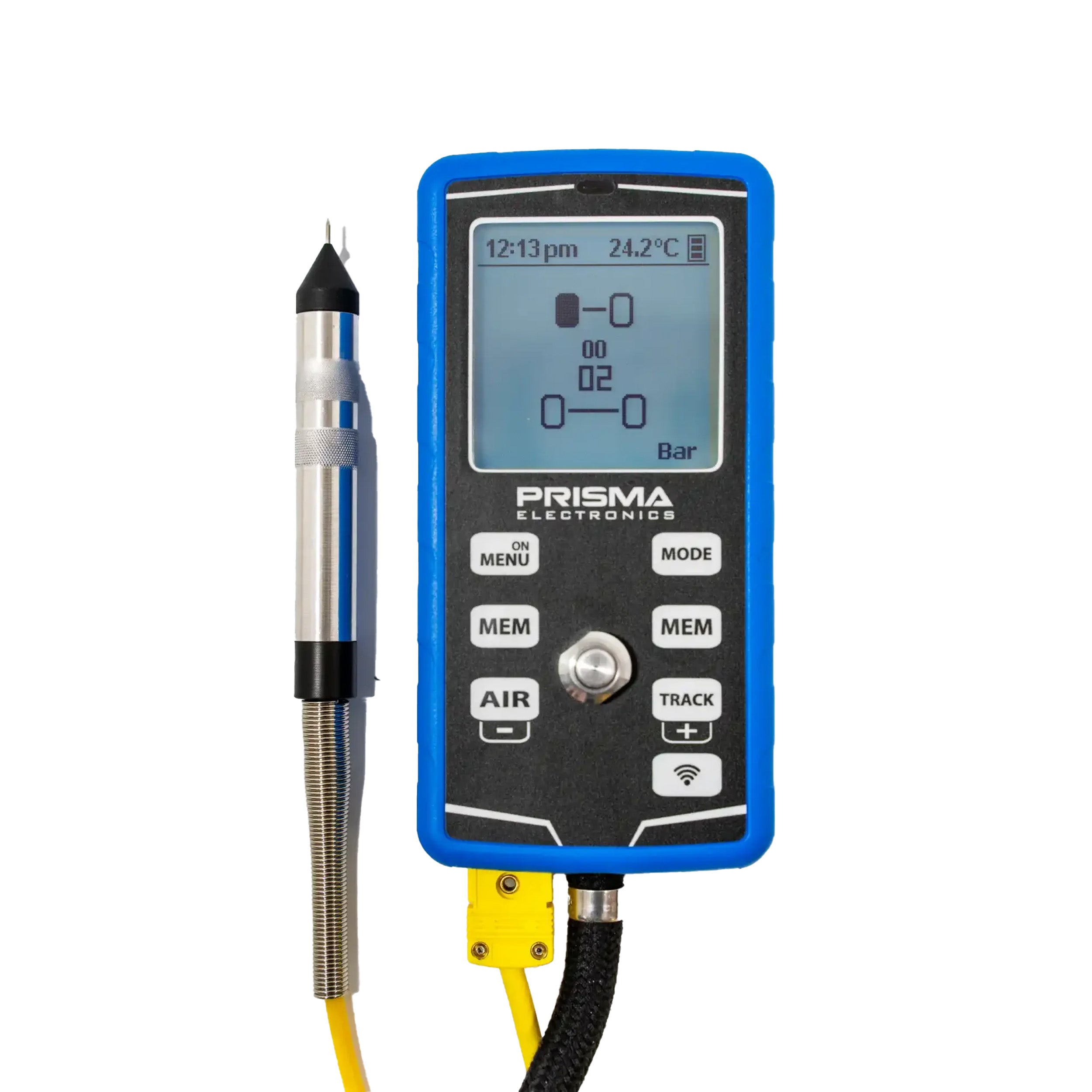

Prisma Electronics HPM5 Digital Tire Pressure Gauge with Dual-Technology Pyrometer

The HPM5 digital tire pressure gauge from Prisma Electronics combines high precision with a dual-technology pyrometer: infrared sensor and needle probe.

Measure and save:

• Tire pressures
• 12 tire temperature points
• Air temperature
• Track temperature

Features:

• Pressure resolution: 0.001 BAR / 0.01 PSI
• Pressure range: 0–7 BAR (100 PSI)
• Aluminum tire chuck designed for leak-free valve measurements
• Quick-function buttons for easy operation

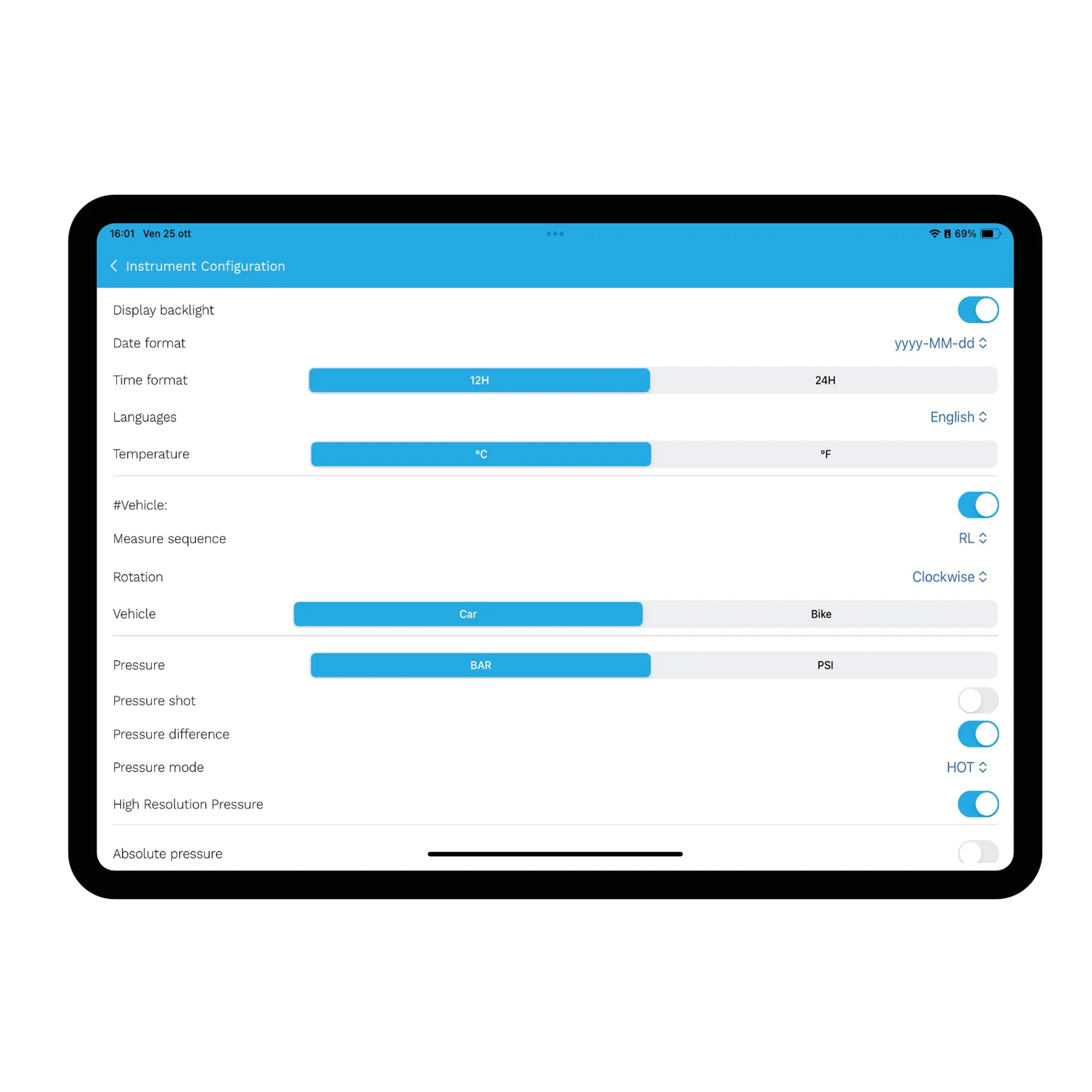

• Wireless connection to Prisma Electronics APP – export data in Excel or PDF format
• ABS case and silicone cover included

Engineered for motorsport

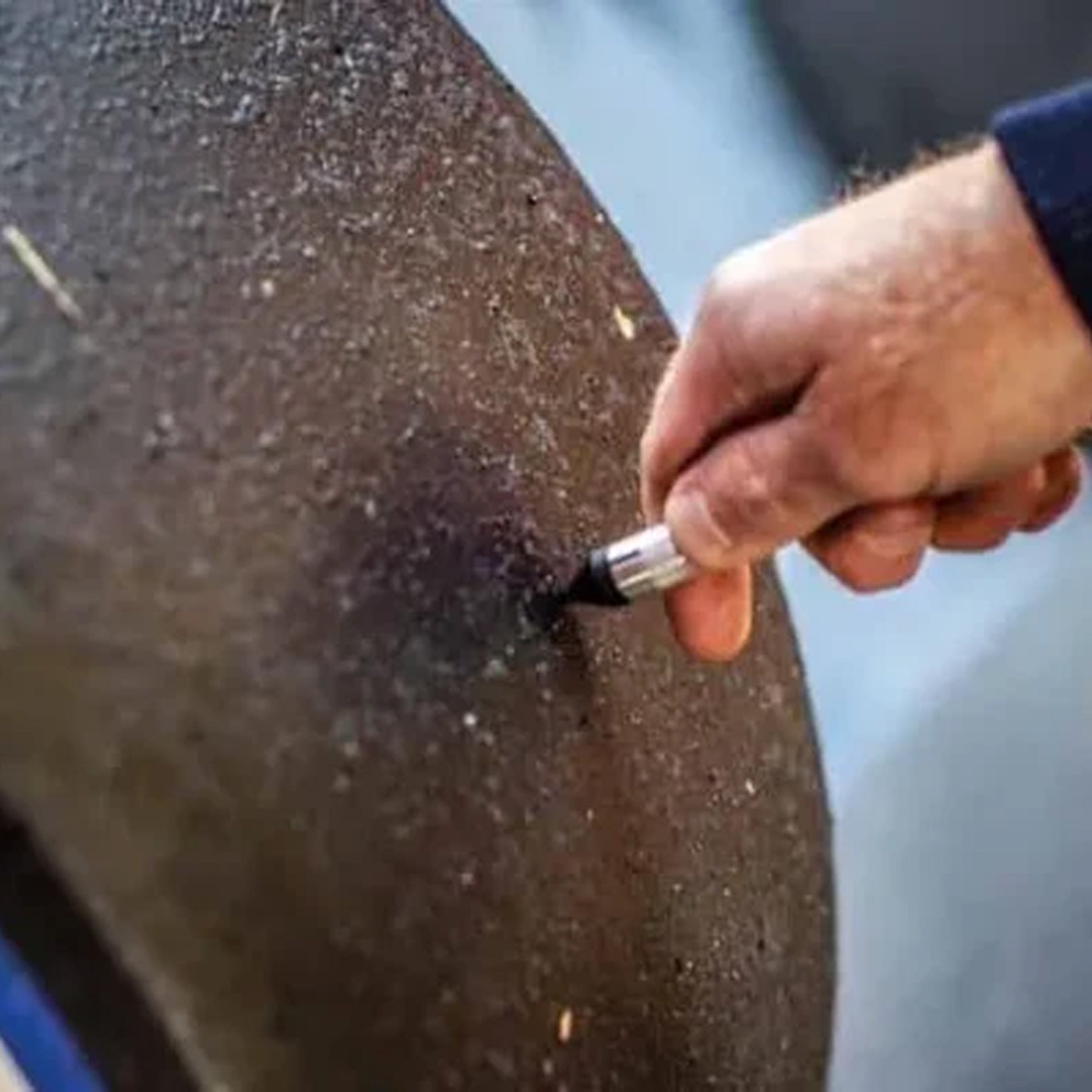

The infrared sensor measures tread temperature in under 0.5 seconds with a 35° field of view – perfect for fast overviews. The needle probe is ideal for measuring compound temperature at specific points, such as blistered or grained areas.

Customizable functionality

Quick-function buttons let you switch between functions instantly, such as:

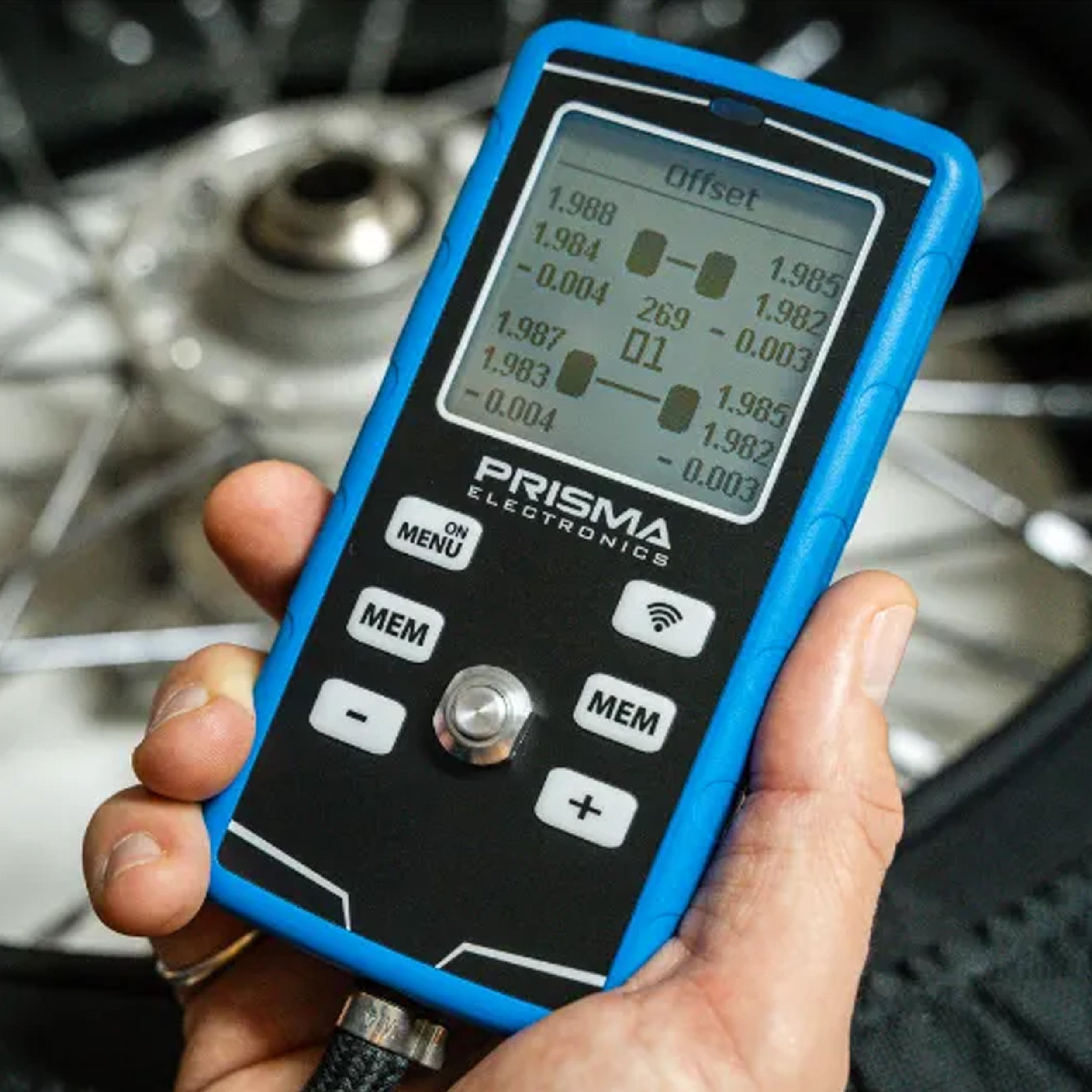

• Offset function: Hide the actual pressure value – ideal for grid and pit lane strategies
• Pit Stop Mode: Automatically records Pit In and Pit Out pressures for endurance racing

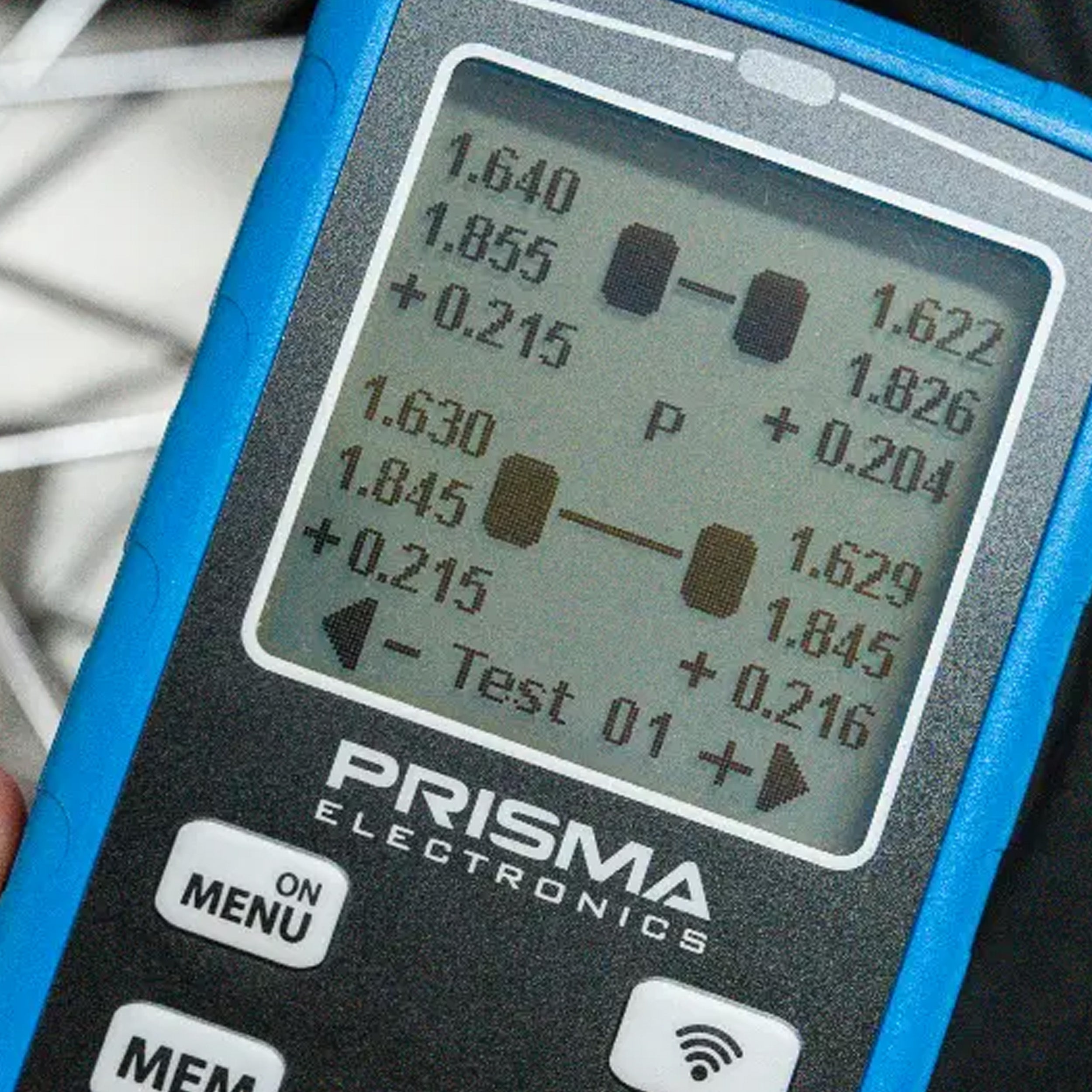

• Store 4 or 8 tire pressure values (cold and hot)

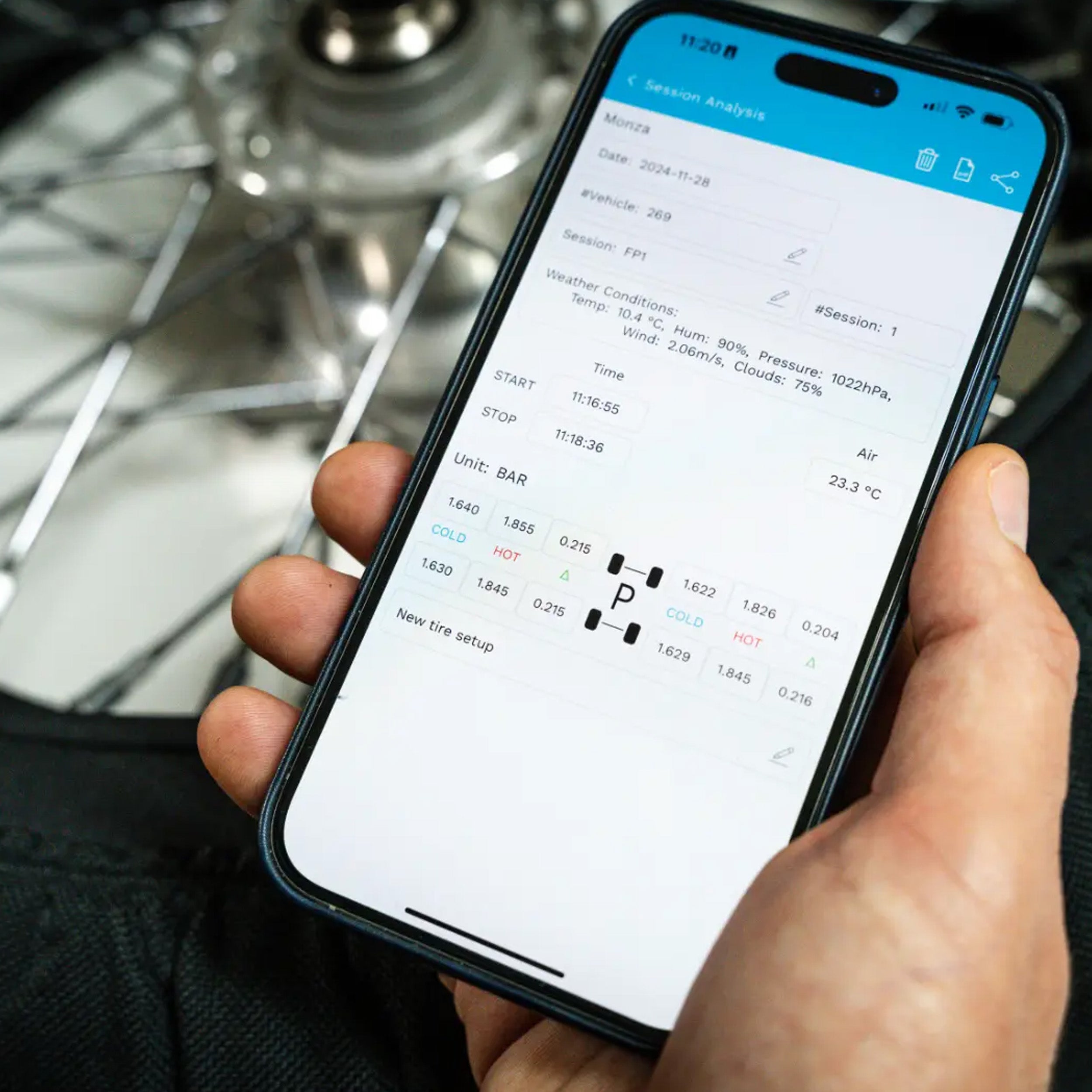

Data management and sharing

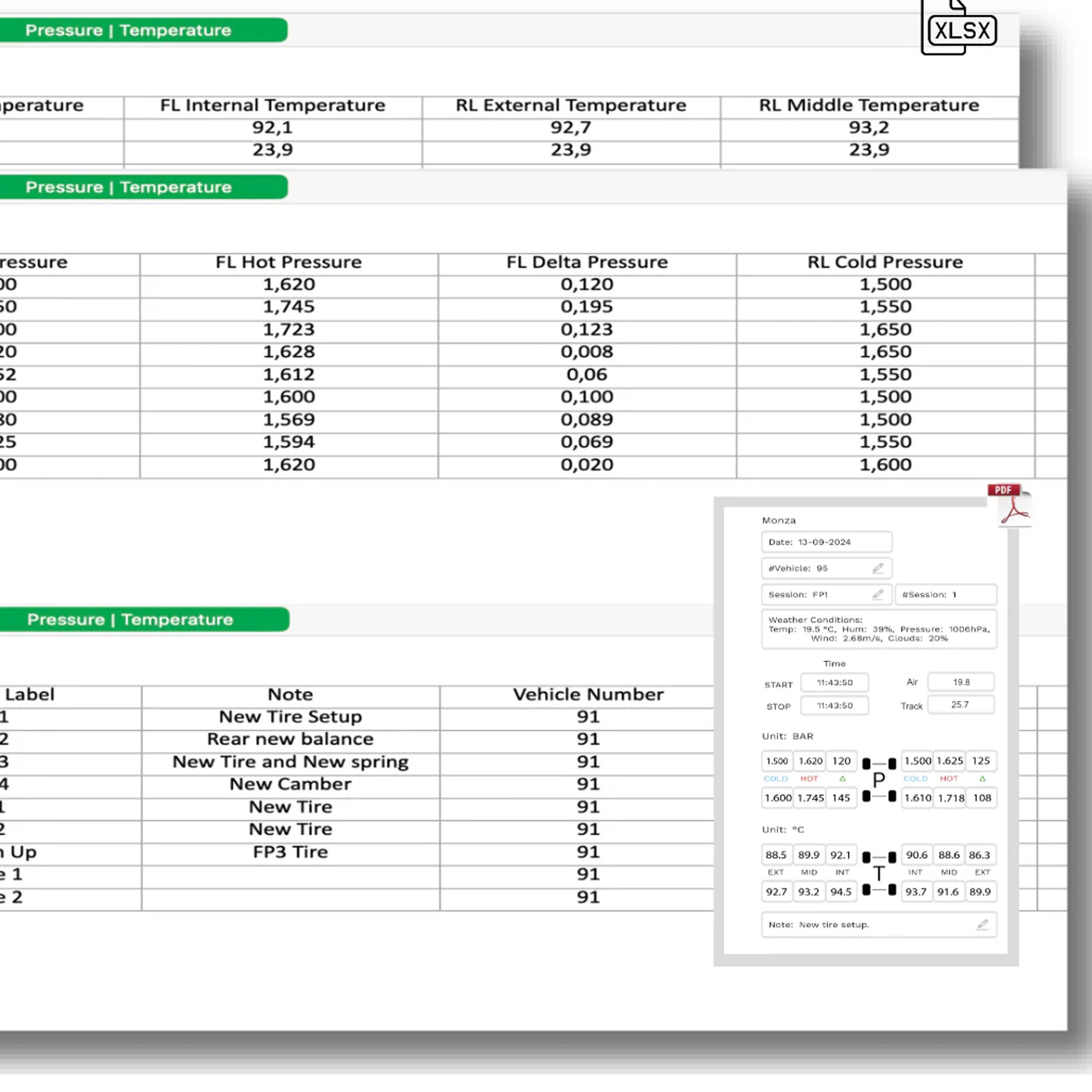

All data can be stored per session and track, exported to Excel or PDF, and shared via the cloud with team members for collaborative analysis.
