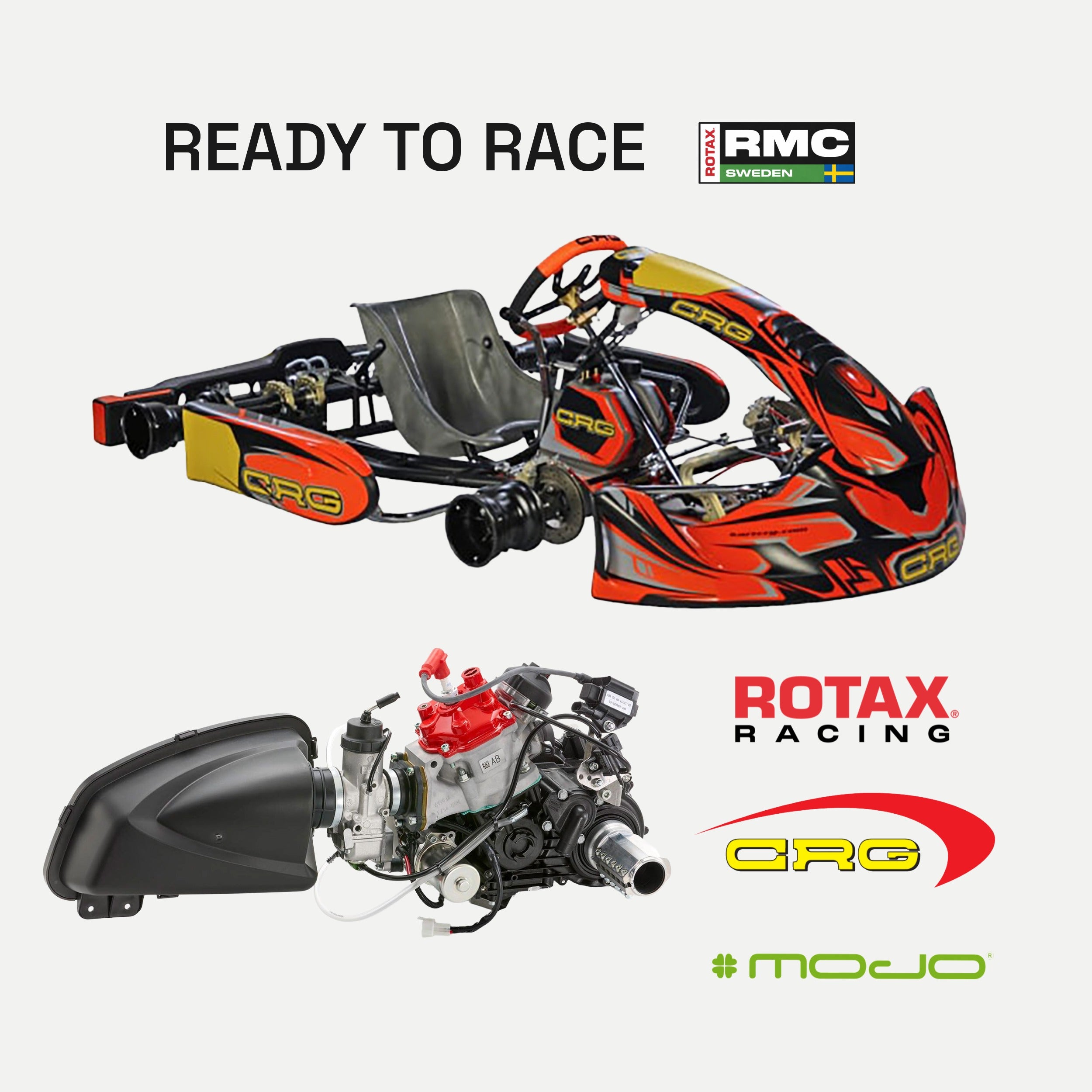

Race ready Crg KT4 + Rotax Max 125 DD2

Build Your Kart!

Here you can specify which seat, lap timer, hour meter, and battery you would like. Everything you need to customize your kart to suit your preferences.

CRG KT4 DD2 30 mm G-MG Hybrid

The CRG KT4 DD2 30 mm G-MG Hybrid is a high-performance racing chassis developed for drivers competing in direct drive and shifter classes who are looking for the perfect balance of grip, stability, and driving feel.

The chassis is manufactured from 30 mm and 32 mm chrome molybdenum steel tubing and features a unique geometry around the central fuel tank area.

This design provides excellent lateral grip and positions the chassis perfectly between a traditional 30 mm and 32 mm chassis. The KT4 DD2 Hybrid offers a highly predictable and responsive driving experience, particularly on slippery tracks and surfaces with low rubber build-up where mechanical grip is crucial.

The model is equipped with top-quality components, including magnesium wheels and magnesium hubs, the VEN 11 braking system, and the new 507/509 bodywork for improved aerodynamics and modern styling.

• Homologation: 002/CH/17
• Tubing Diameter: 30/32 mm
• Wheelbase: 1050 mm
• Rear Width: 650 mm
• Front Width: 738 mm
• Rear Axle: 50 mm
• Brake System: Hydraulic Ven 13 DD / VEN 11
• Brake Disc: Floating
• Fuel Tank Capacity: 8.5 litres
• Steering Wheel: Black Orange Ø340
• Rear Hubs: Magnesium
• Seat: Resin
• Wheels: 132/212 Magnesium

Rotax 125 Max DD2

The engine for everyone aged 18-100+.

What sets the Rotax DD2 apart from other kart engines is the absence of a chain and the smooth paddle shifters mounted directly on the steering wheel. Closer Racing After 15 years, Rotax introduced the major EVO update for the Rotax Max engine range.

The new engines retain the same crankcase and cylinder as before, but Rotax has added color to the crankcase and cylinder head for a more modern appearance. Performance remains the same, but consistency has improved significantly. The engine delivers peak performance straight from the factory. Thanks to the EVO update, the engine benefits from outstanding throttle response while previous issues with misfires and detonation have been eliminated.

Carburetor

The new carburetor marked "XS" provides significantly improved acceleration out of corners. It is easy to tune and requires much less adjustment of jets and other settings. Electronic Control Unit Dedicated DD2 control unit with an optimized ignition curve for the engine.

Electronically Controlled Exhaust Valve The exhaust valve is controlled by the ECU and opens using vacuum assistance. This means no manual adjustment is required from either the driver or mechanic. Battery Holder With integrated combined switch (OFF / ON / START) for a less complex chassis installation and easy operation. Exhaust System Featuring a split rear silencer and exhaust system for reduced noise levels, improved durability, and lower overall weight.
