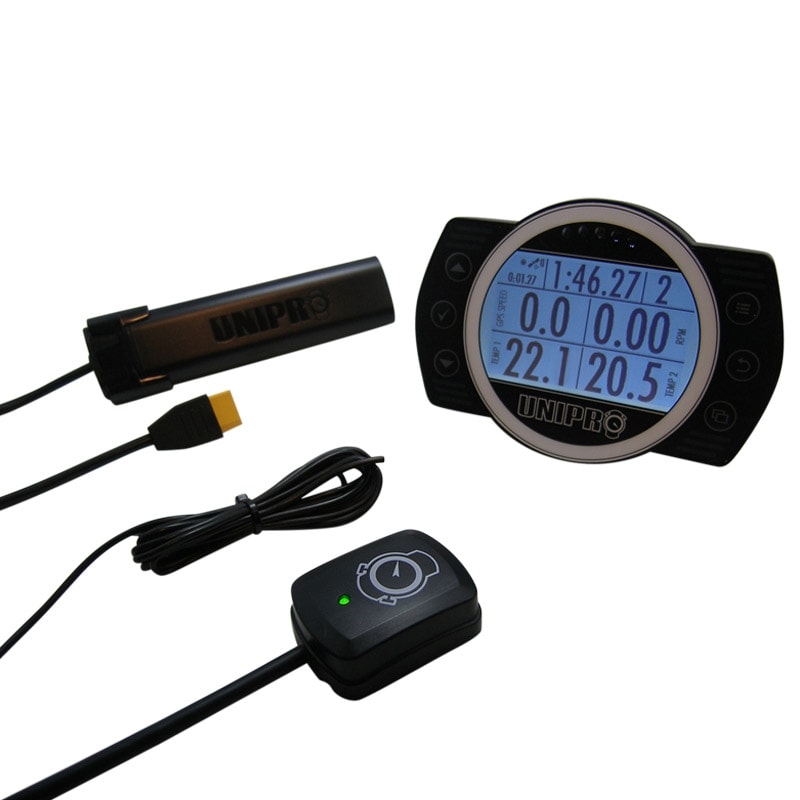

Unipro Unigo 7006 GPS Kit 1

Unigo from Unipro – a brand new model with the same exterior

Unigo continues to lead the market when it comes to innovation in lap timers for karting. The unit is developed, designed and manufactured in Denmark by Unipro Laptimers, who were already on the market back in 1986 with advanced lap timers for karts and cars.

Unigo uses a highly advanced GPS receiver that measures the kart's position and direction using 100Hz technology.

The Unigo 7006 has built-in accelerometers that measure the kart's movement, as well as the movement of the steering wheel, so you can get graphs on your computer showing the steering wheel movements — a perfect aid for reducing small steering corrections.

Most tracks worldwide are available directly in the Unigo unit, or can be downloaded via the internet where track sections with suitable split sections have already been entered. So while driving, the driver can use the clear LEDs to see improvements in every section. Unigo flashes red or green if the section time improves. This way the driver doesn't need to finish the lap to see the improvement.

Analysis software

Unigo comes with the most user-friendly and, at the same time, the most advanced analysis software on the market. Packed with features to quickly and easily document sessions and analyse and compare between drivers.

Download a demo version here to see all the features and test the functionality. Uniquely, the software is also available for both Mac and PC.

https://uniprolaptimer.com/downloads/

There are three different power supply methods available.

• 6 AA batteries (battery holder included in Kit 1 and Kit 2, batteries purchased separately)
• DC/DC converter, you can connect the UniGo directly to the kart's battery (recommended) (optional equipment)
• LiPo battery (optional equipment)

Technical data:

• Memory: Essentially unlimited
• GPS: 100 Hz

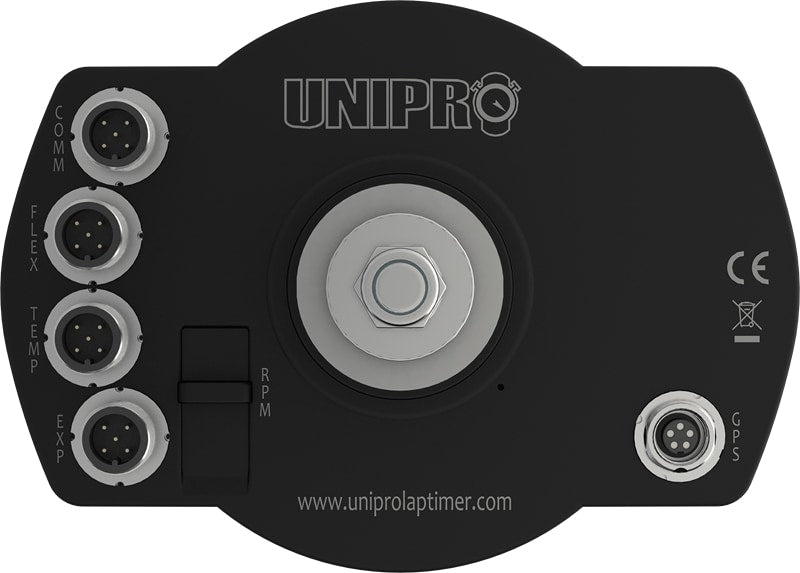

• Inputs: Lap time, position, RPM, 2 x temperature, speed, gear position, ambient temperature
• Lap time sensor: GPS, magnet, infrared, MyLaps Loop*
• Audio: Audio feedback with lap times in headphones*
• Split times: GPS, magnet or wheel sensor
• Expandable: Yes, with Unibox
• Display: 256x160 px
• Backlight: Yes
• LED warnings: 5 very clear LEDs, programmable
• Data transfer: WiFi, USB*, Unigo FlashKey*
• Dimensions: 131.5 x 94.0 x 20.0 mm (5.18 x 3.70 x 0.79)

• Unipro unigo quick guide.pdf
• Unipro Unigo quick guide Track receivers.pdf
• 7006-Quick-Guide.pdf
