Tire Pressure Gauge IR + Tyre Needle Pyrometer Prisma HPM 5

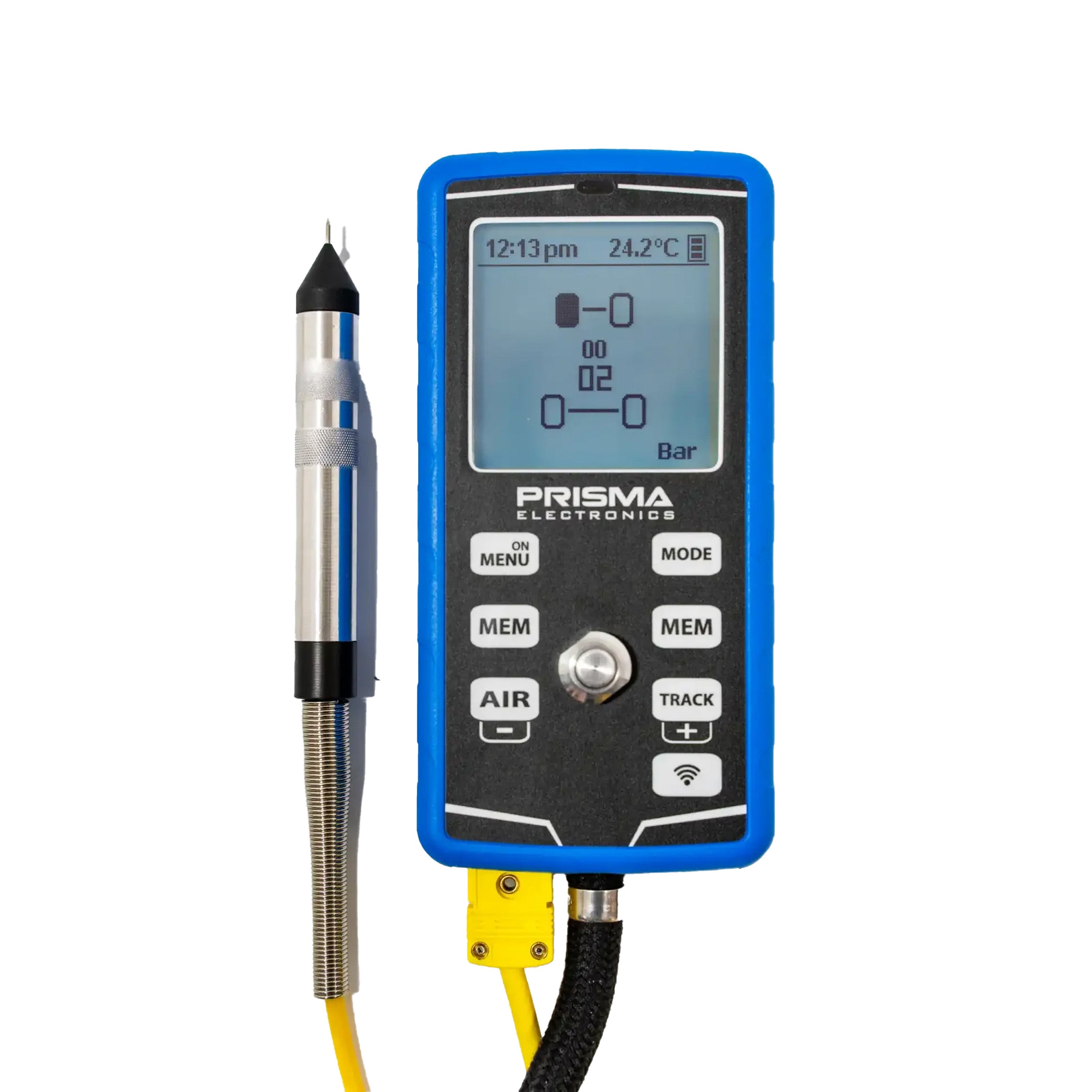

Prisma Electronics HPM5 Digital Tyre Pressure Gauge with Pyrometer and Dual IR Technology

The HPM5 digital tyre pressure gauge from Prisma Electronics combines high precision with a dual-technology pyrometer: infrared sensor and needle sensor.

Measure and save:

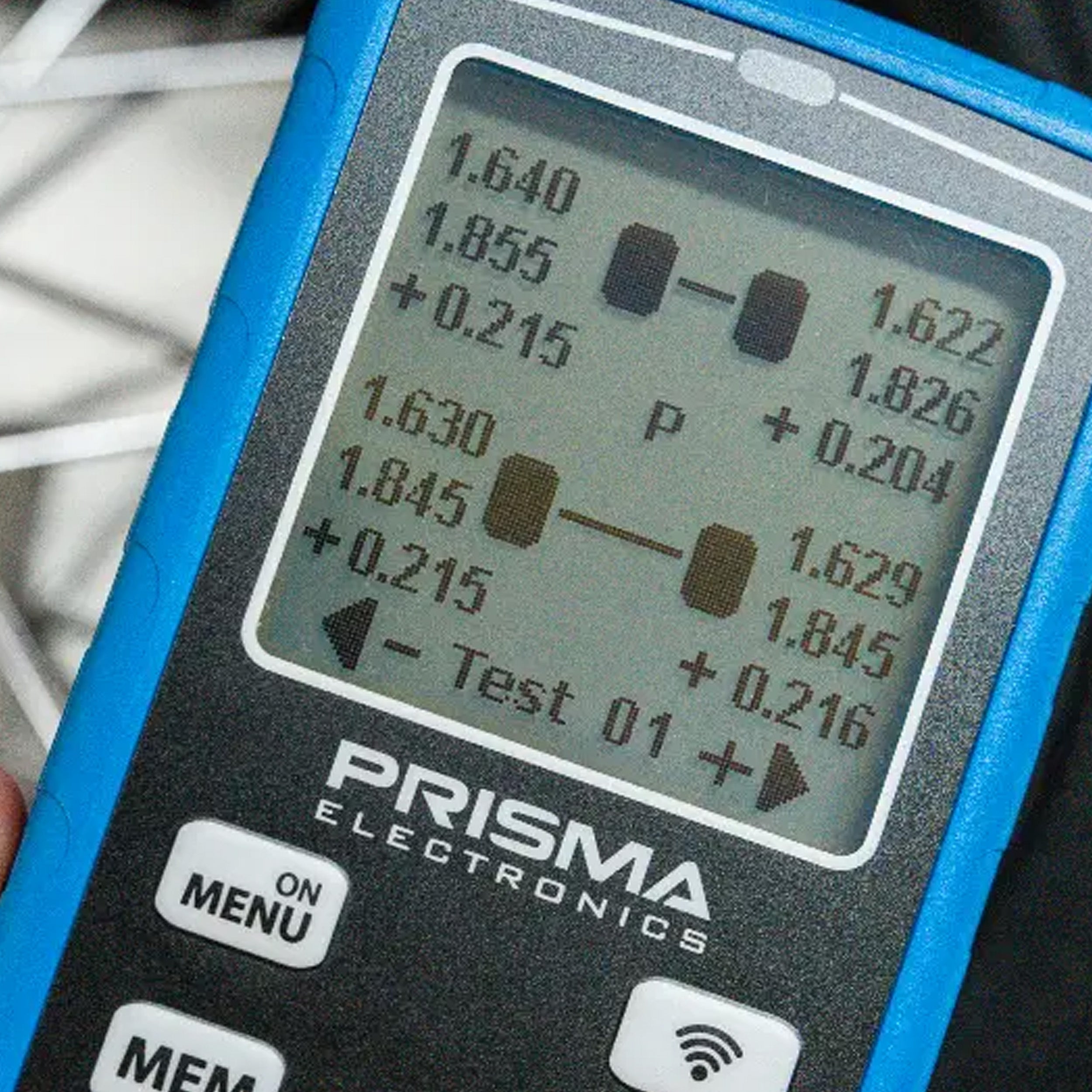

• Tyre pressure
• 12 temperature points on the tyre
• Air temperature
• Track temperature

Features:

• Resolution: 0.001 BAR / 0.01 PSI
• Pressure range: 0–7 BAR (100 PSI)
• Specially designed aluminium valve for pressure measurement without air loss
• Quick function buttons for easy use

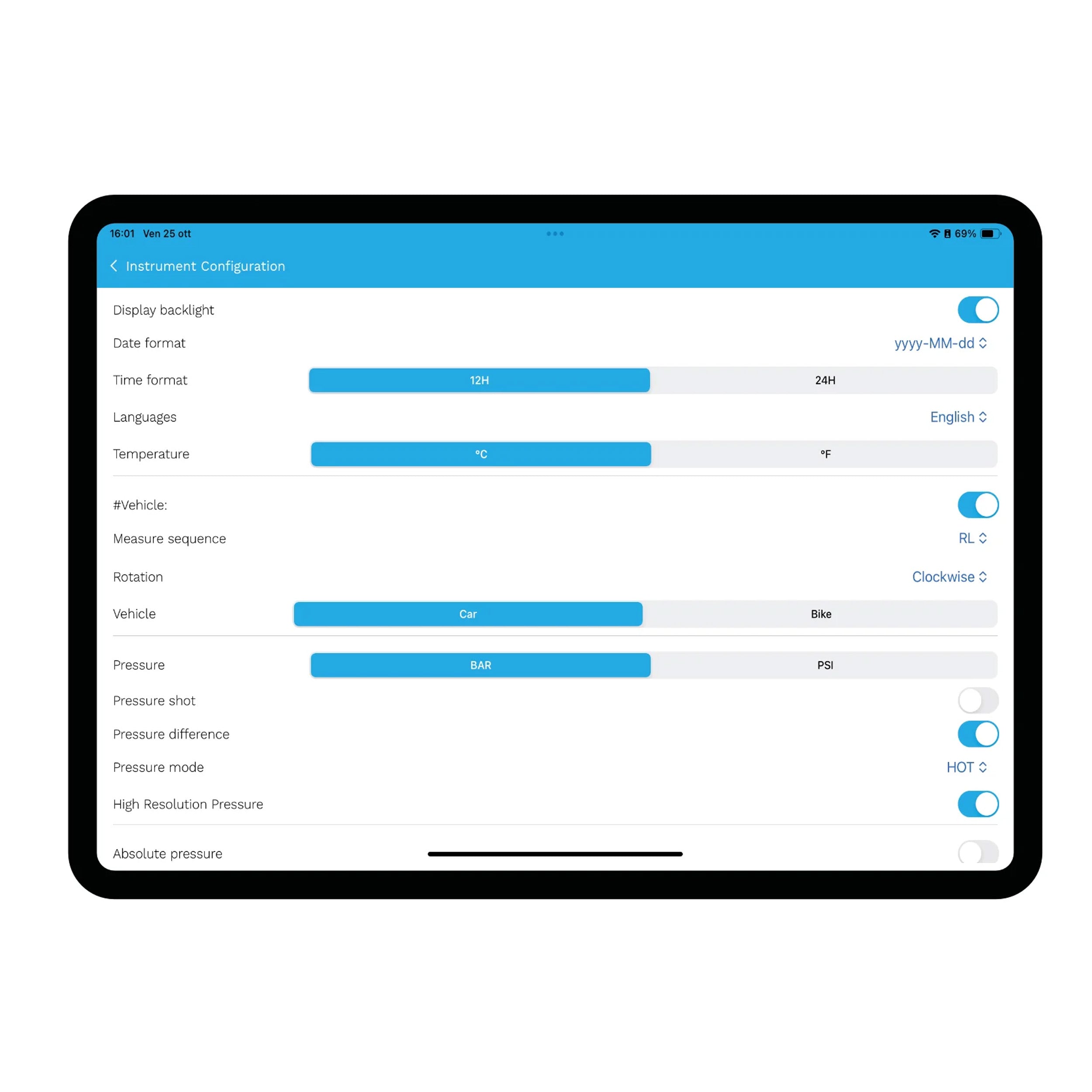

• Wireless connection to the Prisma Electronics APP – export data as Excel or PDF
• ABS case and silicone protector included

Developed for the demands of motorsport

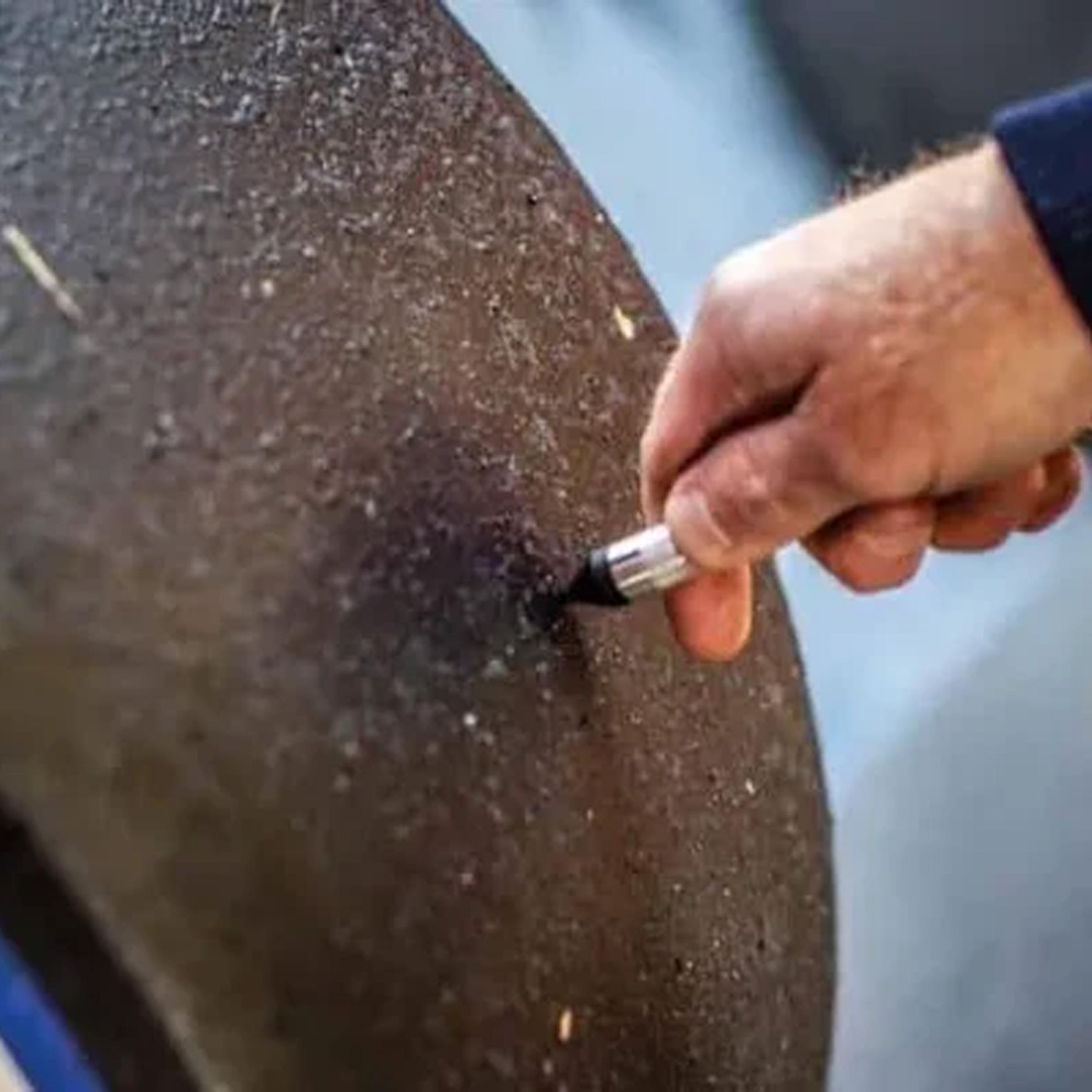

The infrared sensor measures tread temperature in under 0.5 seconds with a 35° reading angle – perfect for quick overviews. The needle sensor is ideal for precise measurement of the tyre's rubber compound at specific points, such as during blistering or graining.

Adjustable function

With quick function buttons you can quickly switch functions, e.g.:

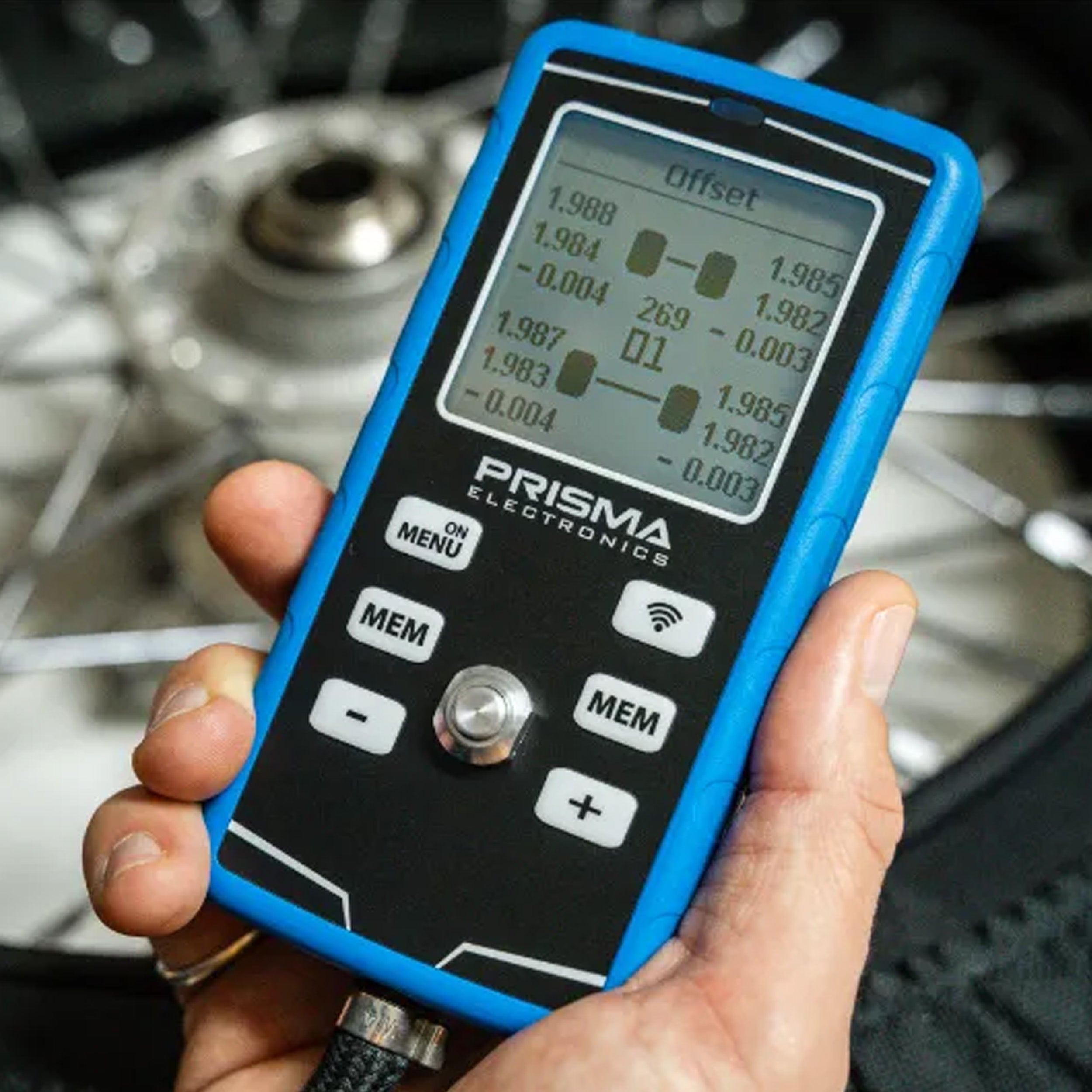

• Offset function: Hide the actual pressure value – ideal for strategic situations on the grid
• Pit Stop Mode: Automatically saves "Pit In" and "Pit Out" pressures during endurance races
• Option to store 4 or 8 tyre pressure values (cold and hot)

Data management and sharing

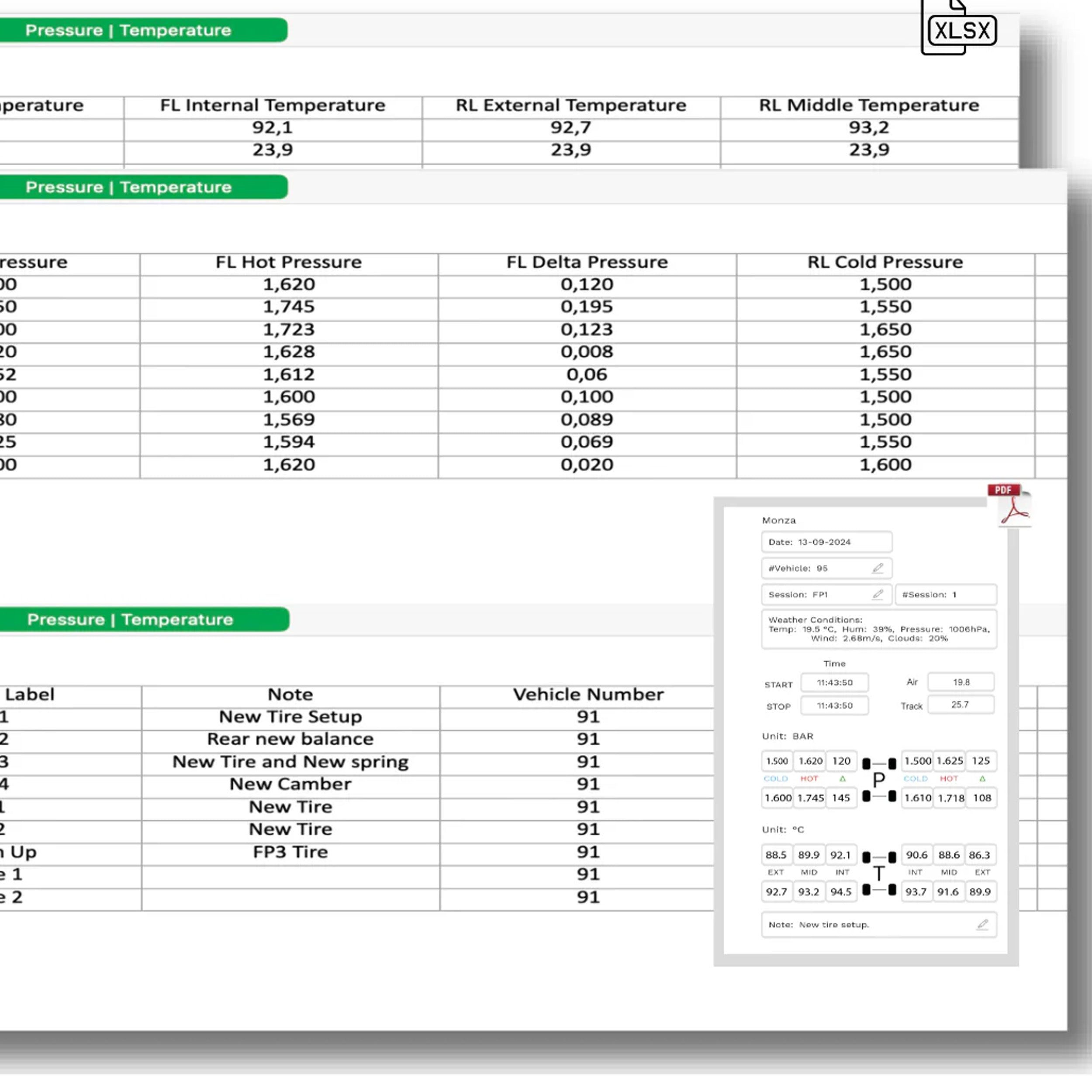

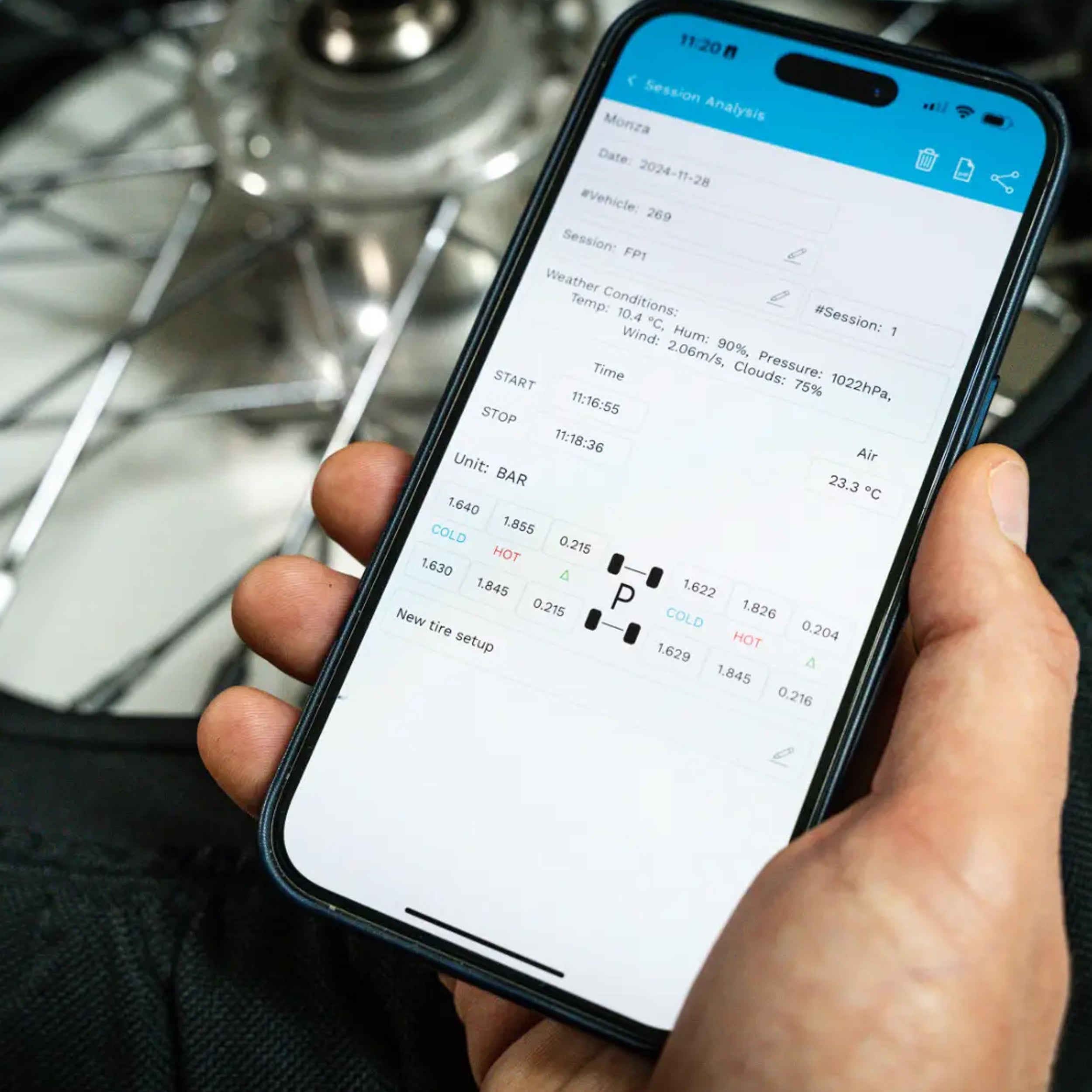

All data can be saved per session and track, exported to Excel/PDF, and shared in the cloud with team members for joint analysis.
