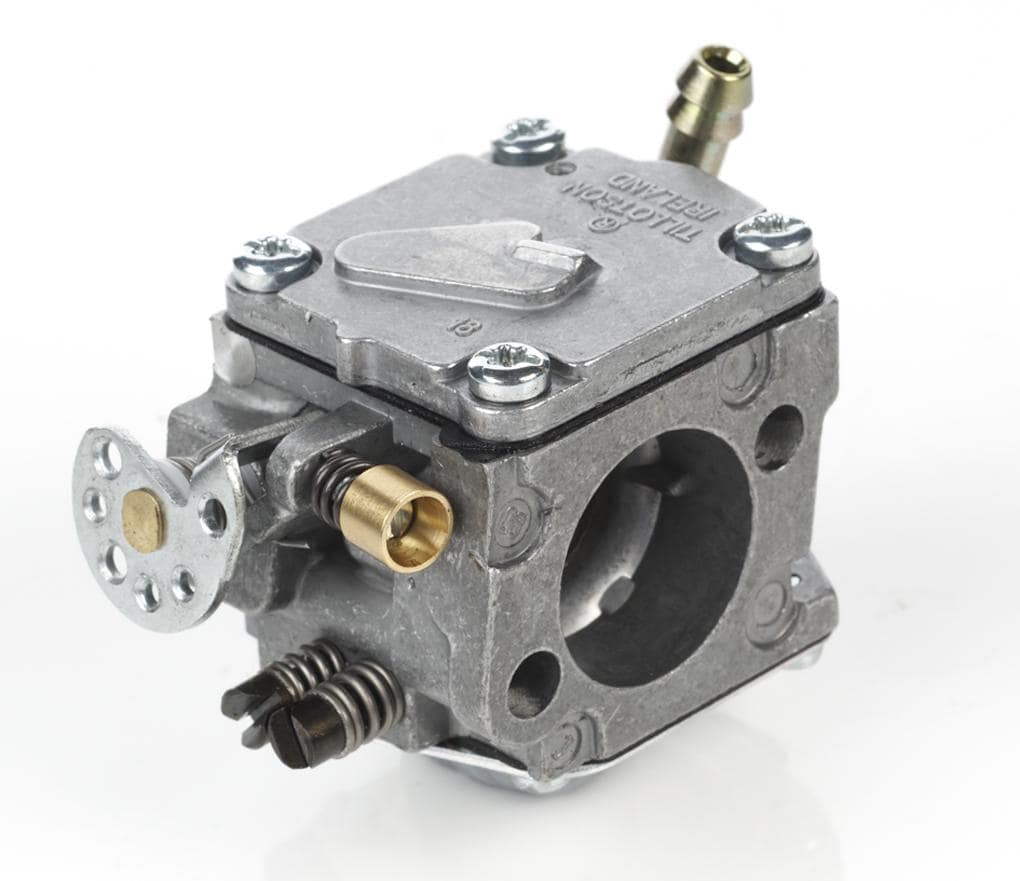

Carburettor Raket 95, Tillotson HS319A

Carburettor for all models of Raket 95.

The carburettor is specially developed for our engine series by Tillotson, one of the world's leading carburettor manufacturers.

With over 100 years of experience, Tillotson was the obvious choice when the Raket 95 was developed.

Technical specifications:

• Venturi diameter: 17.5mm
• Throttle bore diameter: 20.6mm

Standard settings for normal climate:

• Low-speed screw: 2.25 turns
  High-speed screw: 0.75 turns

These are settings that should not be reduced too much.

If these settings are reduced below this, the engine may be damaged due to insufficient lubrication.
