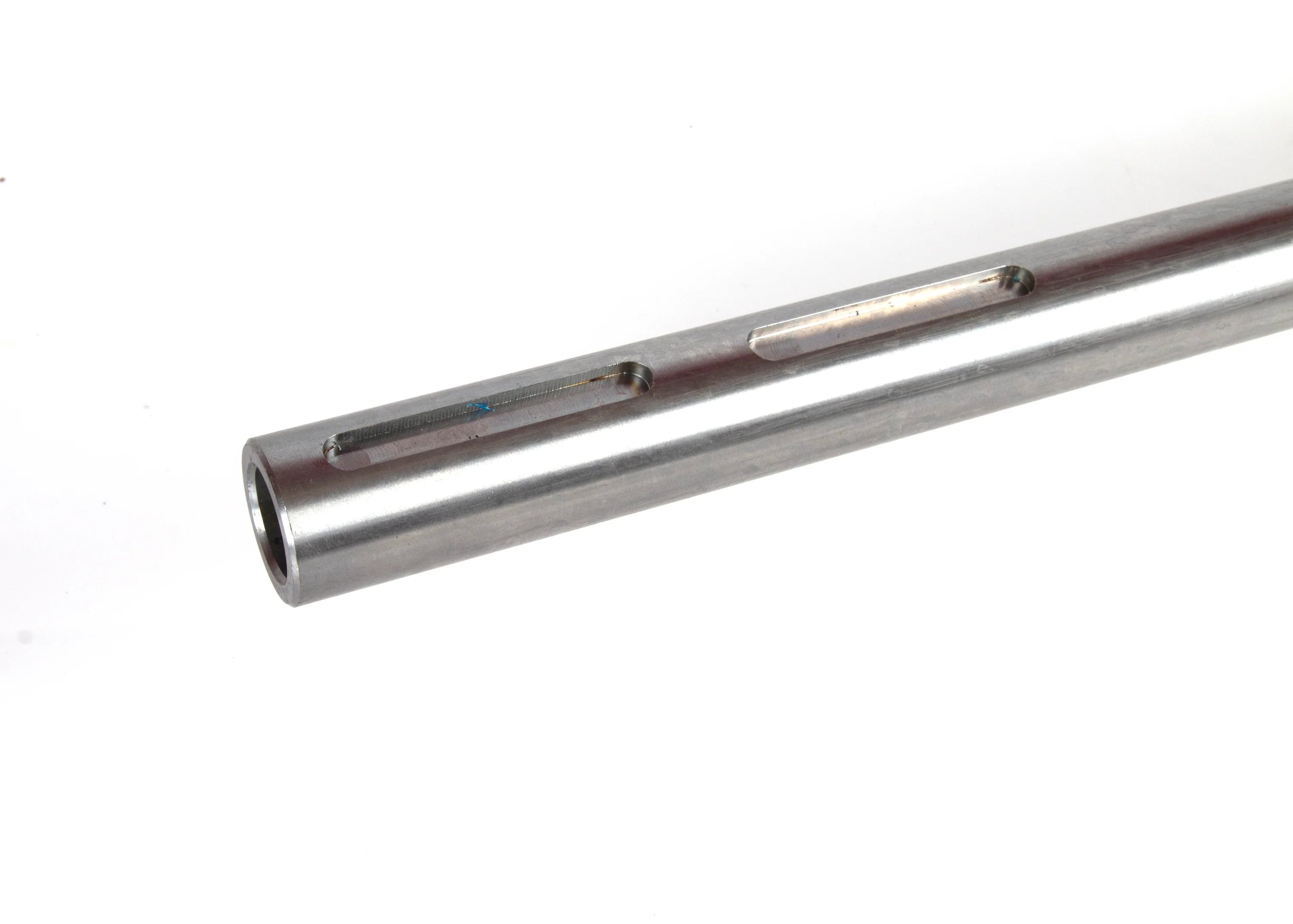

Rear Axle Ø30x960 mm

RADNE Racing Rear Axle Ø30 x 960 mm – Micro, Mini & Mini 60

High-performance racing rear axle developed for karting in the Micro, Mini and Mini 60 categories. Available in several different hardness options, allowing the flexibility, grip and stability of the chassis to be adapted to different track conditions.

The different hardness options make it possible to fine-tune the kart's handling according to grip level, temperature and track conditions. A softer axle generally provides more flex and can help generate grip, while a harder axle provides less flex and a more direct and stable chassis response.

Characteristics of the different hardness options:

• M2 – Medium-soft axle offering relatively high flex, helping to generate grip on low- to medium-grip tracks.
• M6 – Medium-hard axle providing a balanced combination of flex, grip and stability. A versatile option for varying track conditions.
• H2 – Hard axle providing increased stability and a more direct chassis response, suitable for medium- to high-grip conditions.
• H4 – The hardest of these options, providing the least flex and high chassis stability. Suitable when a stiffer and more direct chassis response is desired.

The S6 version features a softer hardness and offers high flexibility and good grip on low-traction tracks. It allows the chassis to work more freely and can help improve traction and responsiveness.

Manufactured from high-quality materials to withstand the demanding loads encountered in racing while providing consistent and reliable performance on track.

For flex values, please refer to the product's technical data sheet.

Technical specifications:

• Diameter: Ø30 mm
• Length: 960 mm
• Wall thickness: 5.0 mm
• Keyways: 5
• Available hardness options: H2, H4, S6, M2 and M6
• Suitable for Micro, Mini and Mini 60

Material data and hardness grades:
