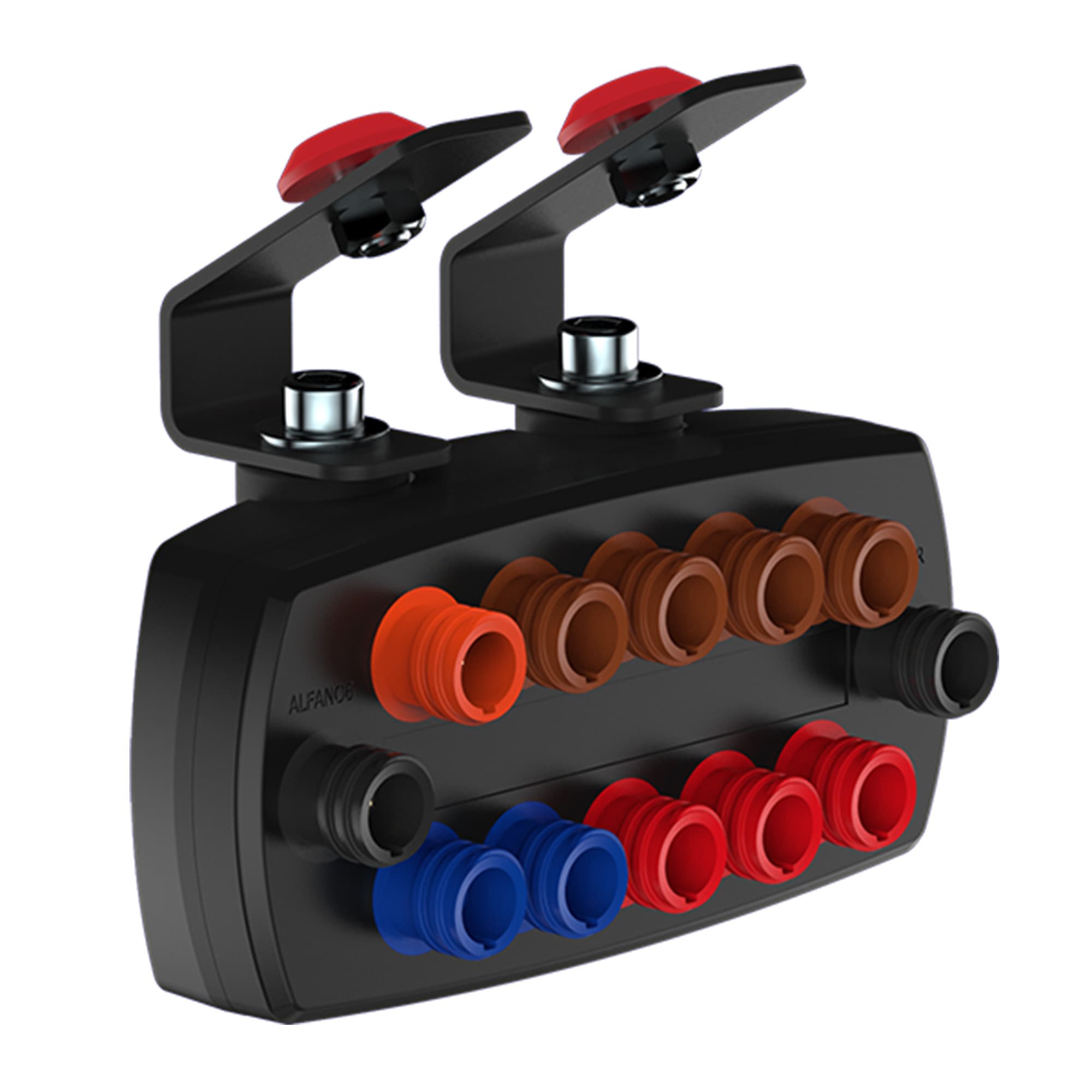

Box12 by A1160 is an advanced expansion module that allows the connection of up to 17 additional sensors and includes a built-in 3-axis G-force sensor. This makes it an essential tool for professionals in karting and motorsports seeking maximum data control and insight.
The module is perfect for expanding your data acquisition system and gaining a complete overview of vehicle performance.
- 4 x speed inputs
- 4 x temperature inputs (2 x NTC, 2 x K-type)
- 1 x Lambda input (non-heated)
- 1 x analog input
- 1 x 5V output
- 2 x pedal movement inputs
- 1 x steering movement input
- 1 x exhaust valve movement input
- 1 x external power supply input / low voltage 12V RPM signal from the vehicle’s ECU
- 1 x USB port for data download
With Box12, you get a flexible and reliable solution that elevates your data acquisition capabilities.
